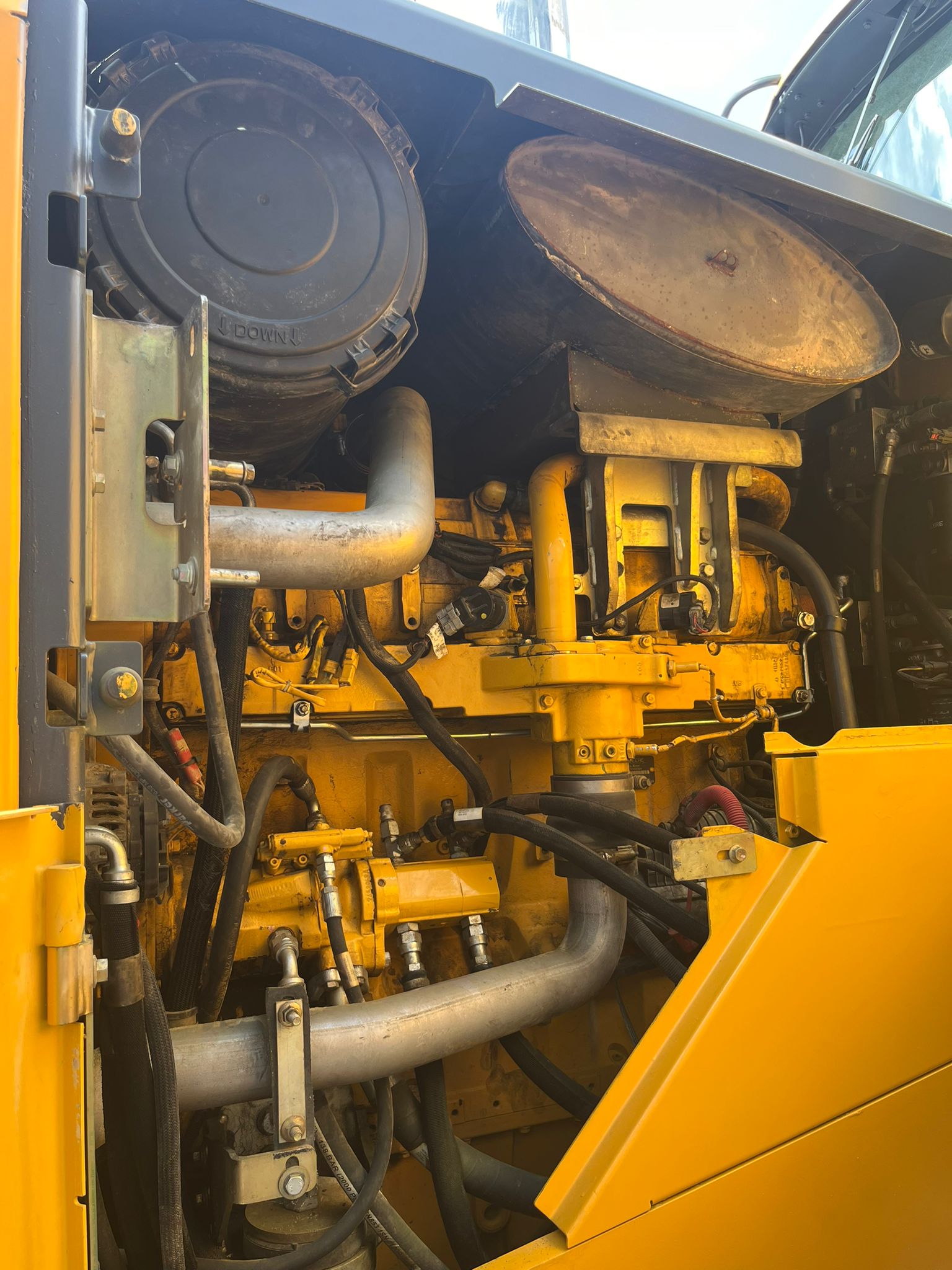

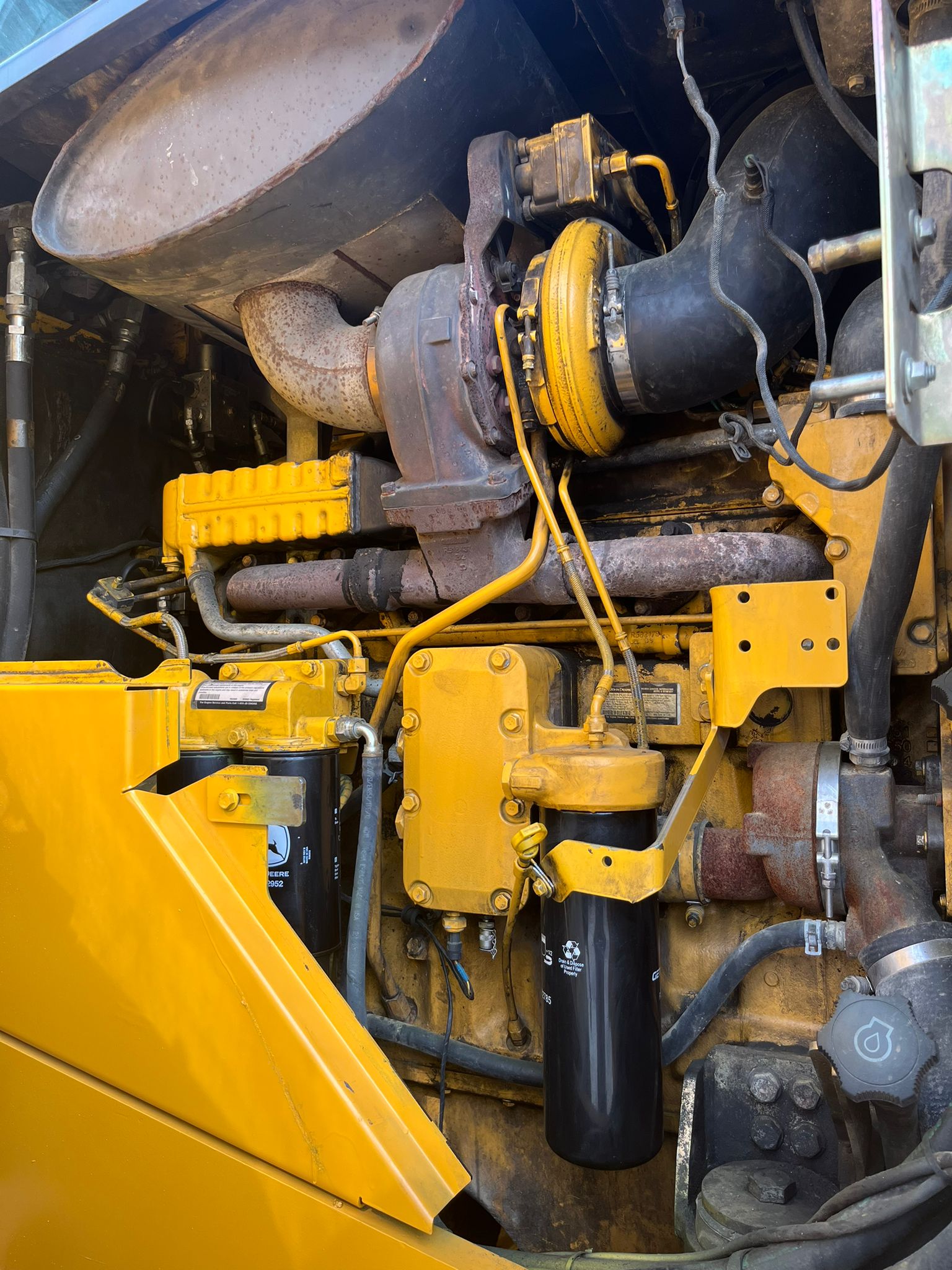

Engine

-Number Of Cylinders: 6
-Engine Make: 2240
-Engine Model: 6135H, Tier III certified
-Net Power:333hp
-Power Measured @1600rpm
-Max Torque: 1194lb ft
-Displacement: 824cu in
-Torque Measured @900rpm
-Aspiration: Turbocharged charge air cooled

Operational

-Operating Weight: 56634.6lb
-Fuel Capacity: 124.1gal
-Hydraulic System Fluid Capacity: 42.1gal
-Engine Oil Fluid Capacity: 10.1gal
-Cooling System Fluid Capacity: 12.6gal
-Transmission Fluid Capacity: 7.4gal
-Static Tipping Weight: 37983.5lb
-Turning Radius: 19.5ft in
-Operating Voltage:24V
-Alternator Supplied Amperage: 80amps
-Rear Axle Oscillation: 26degrees

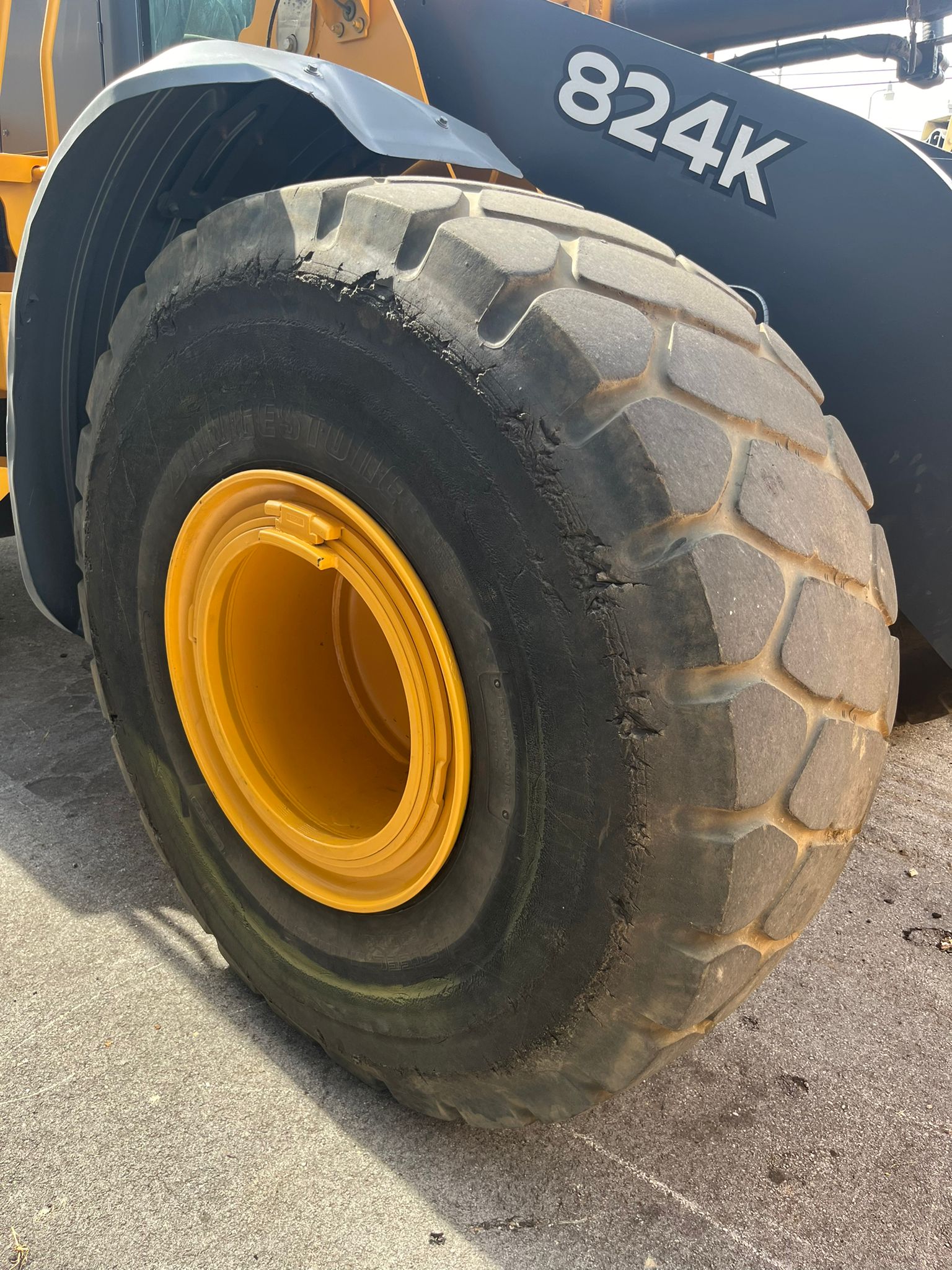

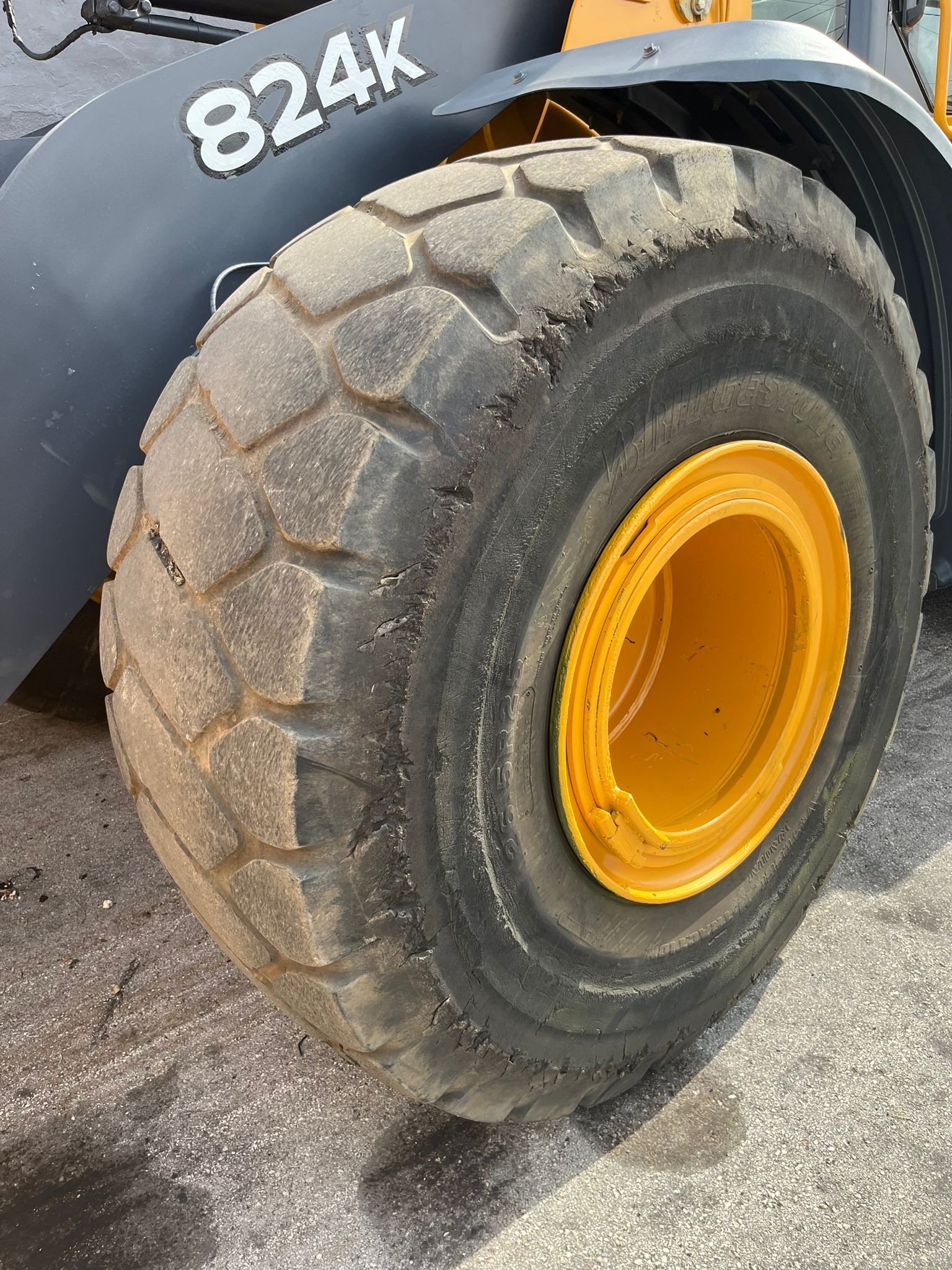

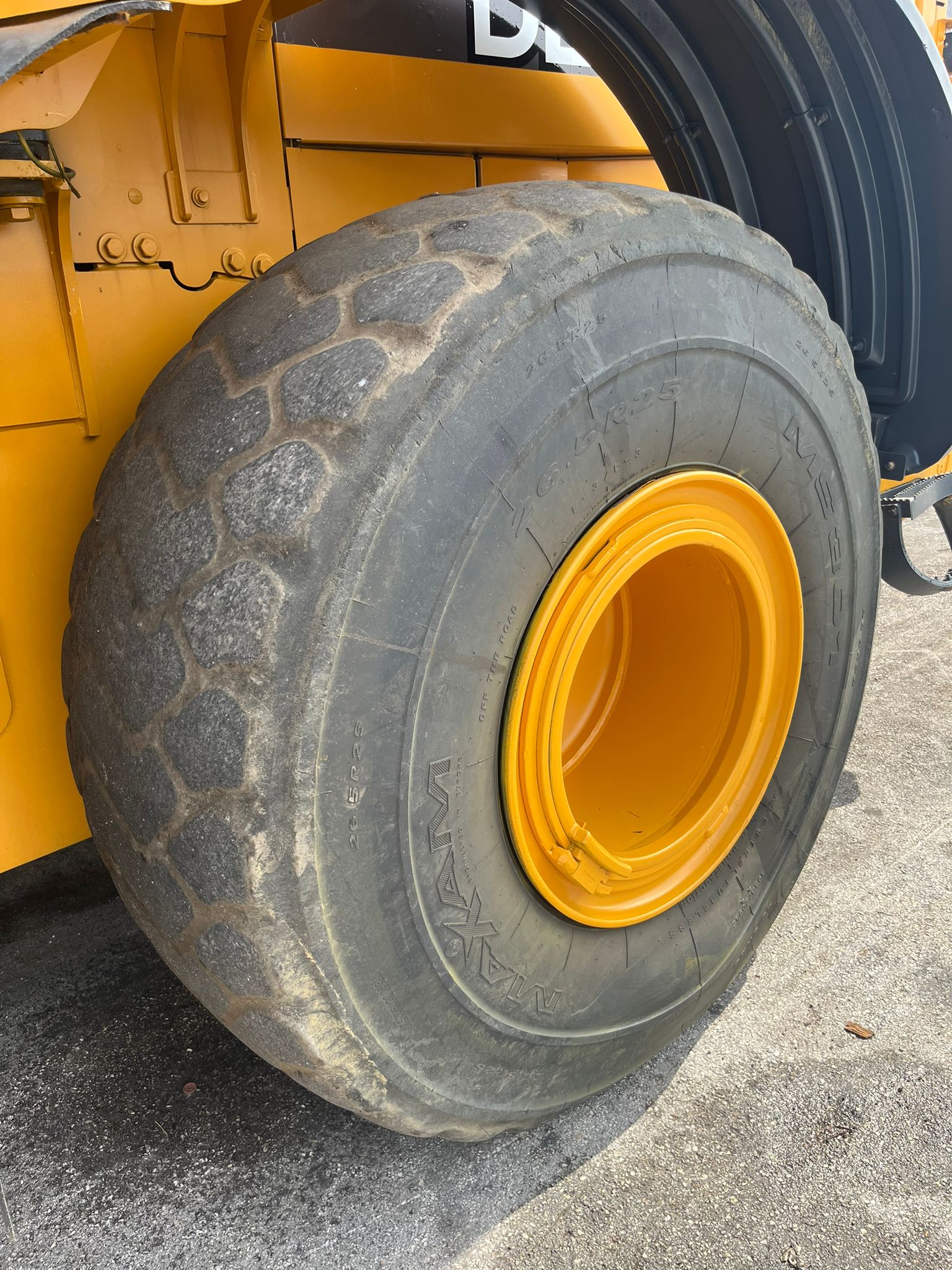

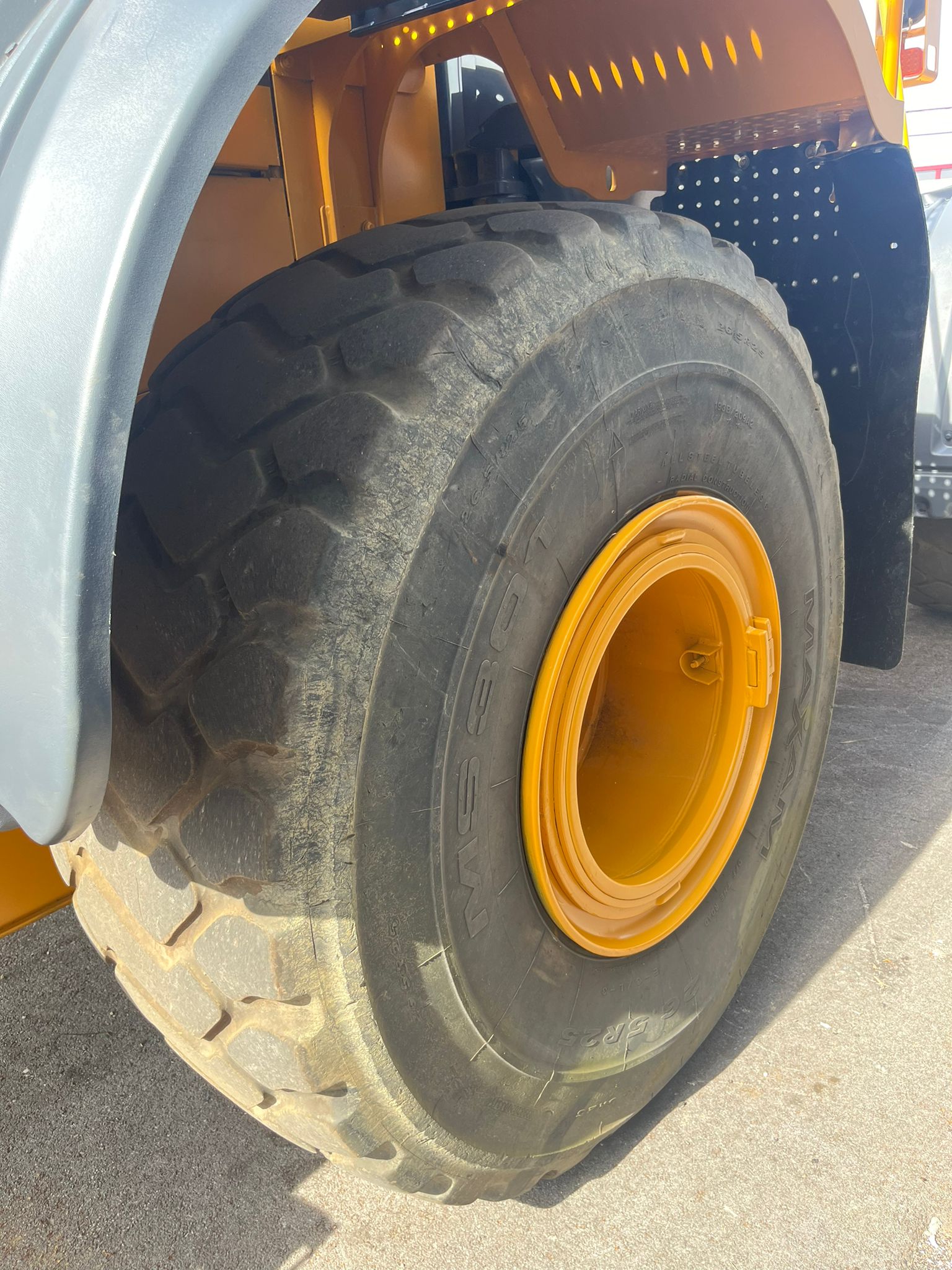

-Tire Size: 26.5 R 25

Transmission

-Transmission Type: Countershaft, powershift
-Number Of Forward Gears: 4
-Number Of Reverse Gears: 3
-Max Speed - Forward: 24.9mph
-Max Speed - Reverse: 18.8mph

Hydraulic System

-Relief Valve Setting: 3650psi
-Pump Flow Capacity: 135.6gal/min

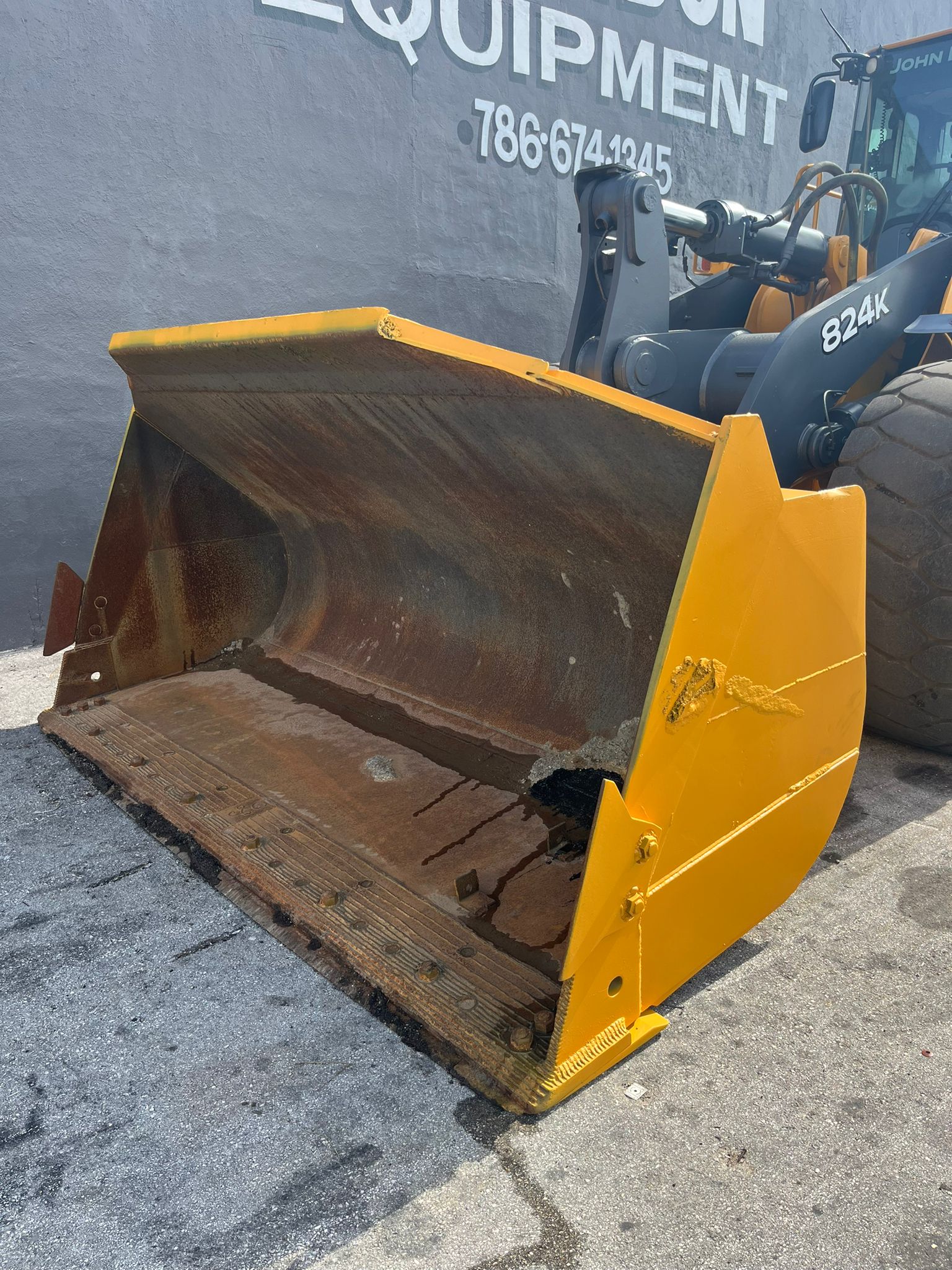

Dimensions Bucket

-Dump Clearance At Max Raise: 11.91ft in
-Bucket Capacity - Heaped: 6.02yd3
-Bucket Capacity - Struck: 5.24yd3
-Bucket Width: 10.73ft in
-Breakout Force: 39570lb

General Dimensions

-Ground Clearance: 1.51ft in
-Length With Bucket On Ground: 32.06ft in
-Width Over Tires: 10.06ft in
-Height To Top Of Cab: 11.49ft in
-Wheelbase: 11.36ft in
-Hinge Pin - Max Height: 15.92ft in
-Reach At Max Lift And Dump: 5.35ft in
